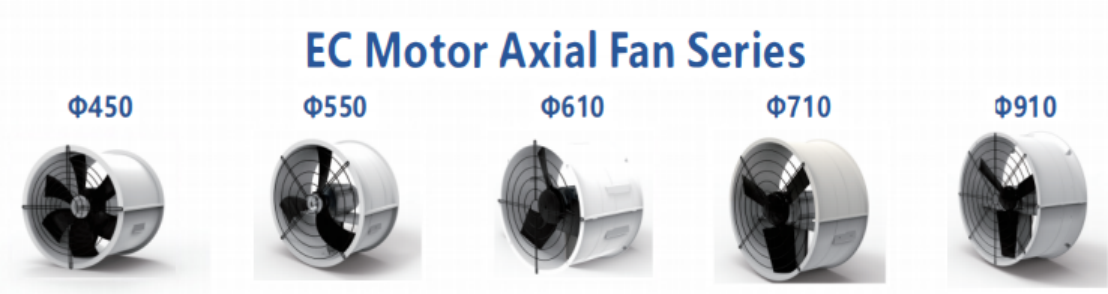

AXIAL FLOW FAN- CIRCLE SHAPE

Inquire Now

Add to Inquiry Basket

Last Product

Description

1. Scientific overall fan design, featuring a fiberglass (SMC) molded casing tailored to air flowcharacteristics, offers high airflow, highefficiency, and corrosion resistance.

2. Utilizes GOFEE's independently developed permanent magnet brushless variable frequency motor specifically designed for direct-drivefans, offering high efficiency, a wide operating range, strong load capacity, and high speed stability. The intelligent digital control and drive module with a built-in microprocessor chip facilitates 0-10V analog control and RS485 interface control. Protection rating: IP67, insulation class F_.Asynchronous motors are also supported.

3. Can be installed with an external damper, effectively preventing backflow, offering excellent sealing, low air resistance, and easy installation.

4.The fan offers low noise, high efficiency, excellent high_-pressure resistance, and stable operation.

Models	Rated Power (kW)	50pa		75pa		120pa		180pa		Fan Size (mm)	Shell	Blade	Installation size (mm)
Models	Rated Power (kW)	Air Flow m³/h	Energy efficiency ratio m3/h/w	Air Flow m³/h	Energy efficiency ratio m3/h/w	Air Flow m³/h	Energy efficiency ratio m3/h/w	Air Flow m³/h	Energy efficiency ratio m3/h/w	Fan Size (mm)	Shell	Blade	Installation size (mm)
GFGZ-450	0.37	4600	18.8	3500	13.6	2400	8.8	/	/	φ450φ500380	SMC	PAG	φ510
GFGZ-550	0.37	7300	17.6	6600	15.6	4800	11.2	/	/	φ550φ600300	SMC	PAG	φ610
GFGZ-610	0.75	10400	14.1	9800	12.8	8600	10.6	5900	6.9	Φ620φ670420	SMC	PAG	Φ680
GFGZ-710	1.1	15000	13.9	14100	12.6	12500	10.7	9700	7.8	φ710φ760 380	SMC	PAG	φ770
GFGZ-910	2.2	28200	12.6	26800	11.8	24200	10.2	20600	8.5	φ930φ990450	SMC	PAG	Φ1000
